KISS-488
HPIB / GPIB / IEEE-488 To Ethernet Converter
 |
KISS-488 when plugged into the DMM HPIB jack turns the DMM into a web server accessible from any standard browser Commands are sent from the browser and results are displayed in the browser. KISS-488 turns the DMM into a logger, sampling and graphing data over longer intervals. |
 |

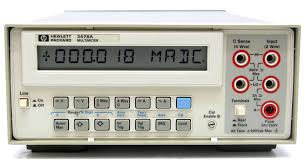

Hewlett Packard 3478A Digital Multimeter with HPIB interface |
 |
The HP 3478A is connected to my network wirelessly via a Netgear EX 3700-100NAS WiFi Range Extender. Any computer on the network can access KISS-488 Power is supplied to the KISS-488 by a 5 volt USB powersupply, provided with the KISS-488. |
 |

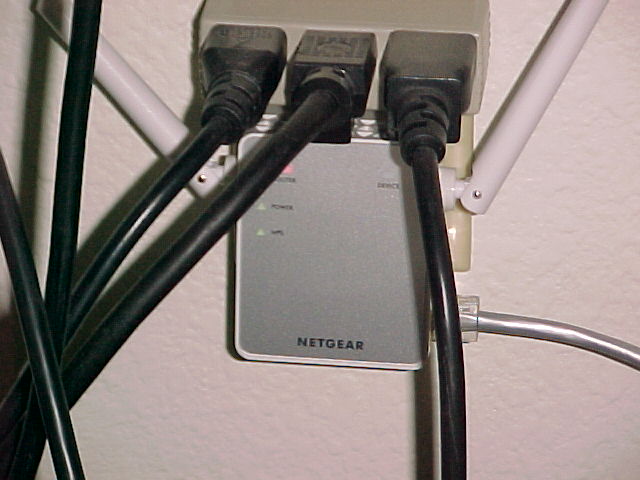

Netgear EX3700-100NAS WiFi Range Extender With Ethernet cable to KISS-488. |
 |

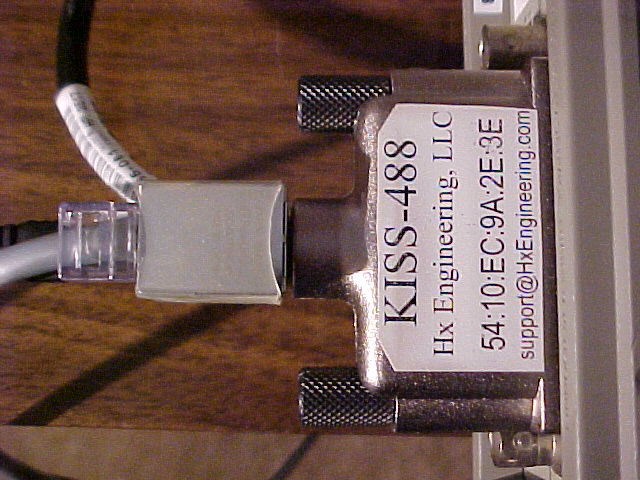

View of KISS-488 attached to HPIB jack on the rear apron of the HP 3478A Ethernet cable to Range Extender visible. <--- <--- Check with Steve for information on the KISS-488 <--- |
 |

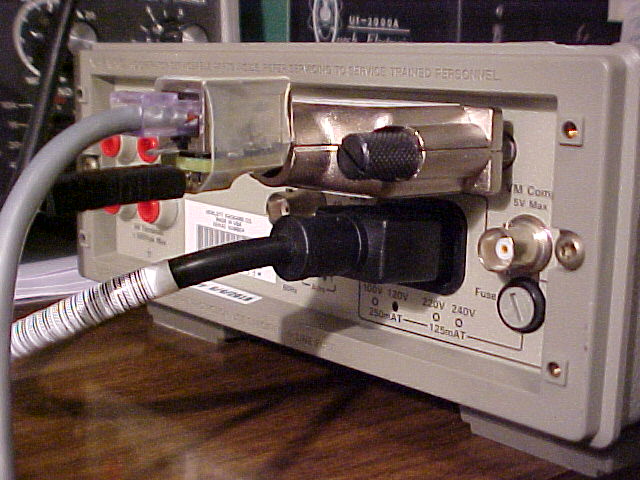

Rear apron of HP 3478A. 5 volt power cable just below the Ethernet cable. |
 |

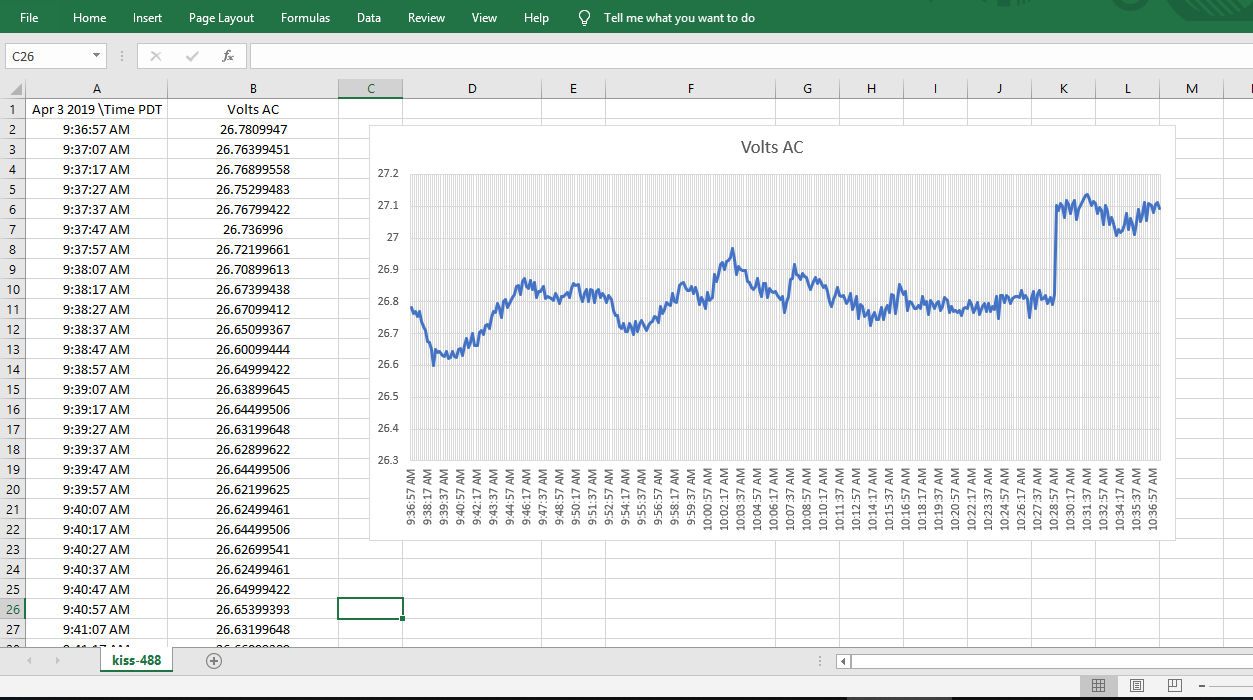

Log of a 24 VAC transformer. Taken every 10 seconds for an hour. The file from KISS was exported as a .CSV file from my browser and imported into Excel. In Excel the chart was created from the logged readings. |
 |

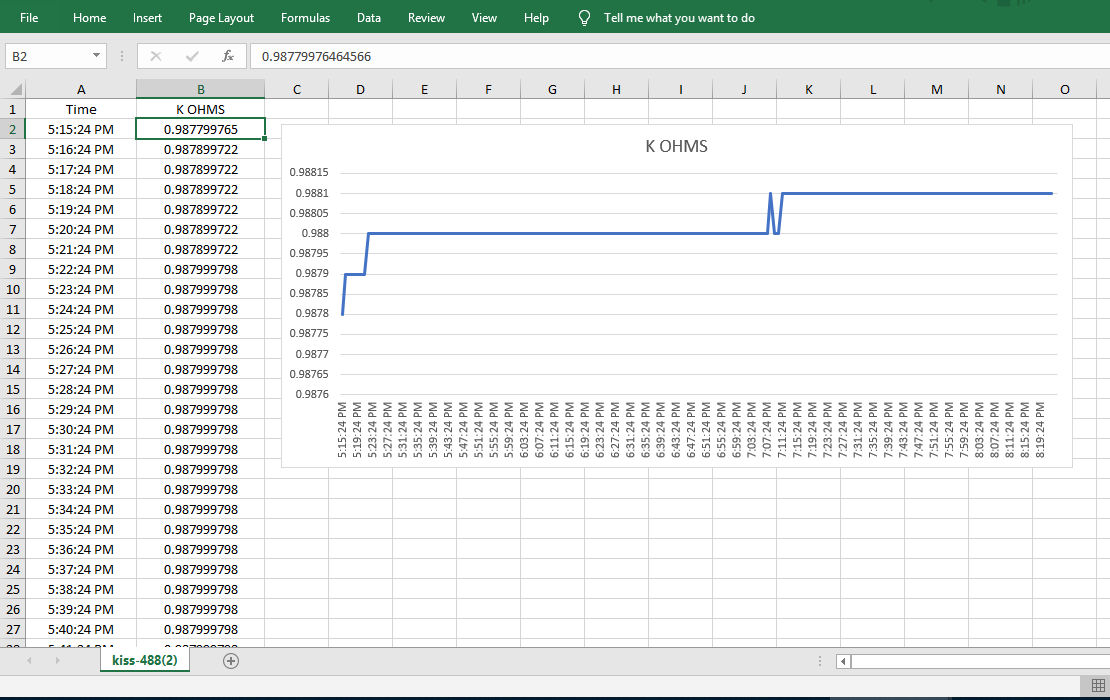

Log of a 1 K resistor. Taken every minute for 3 + hours in 4 wire mode. |
 |

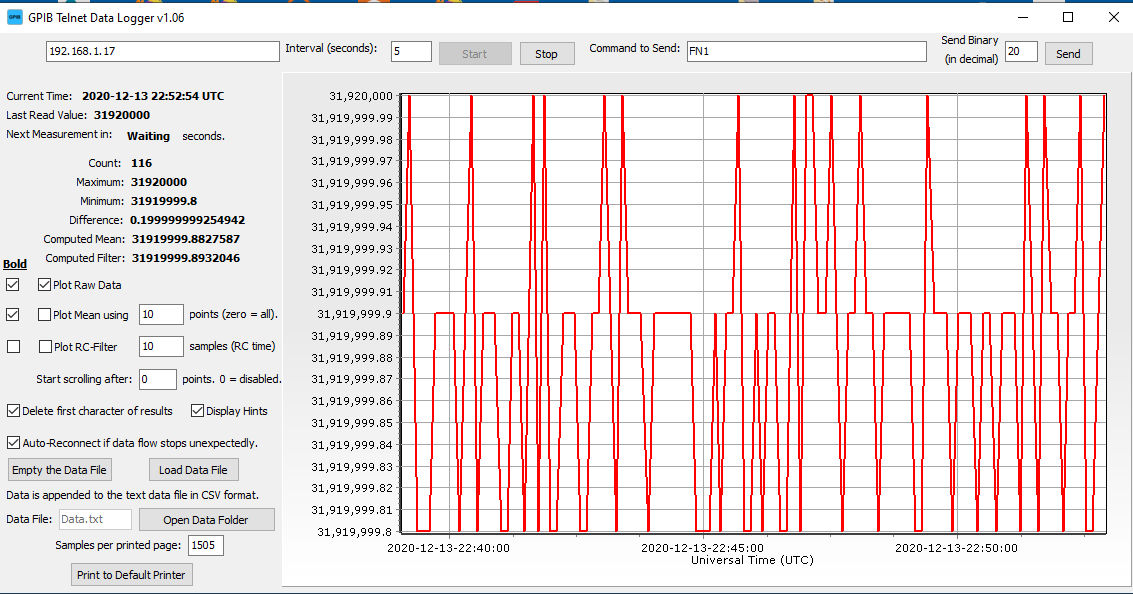

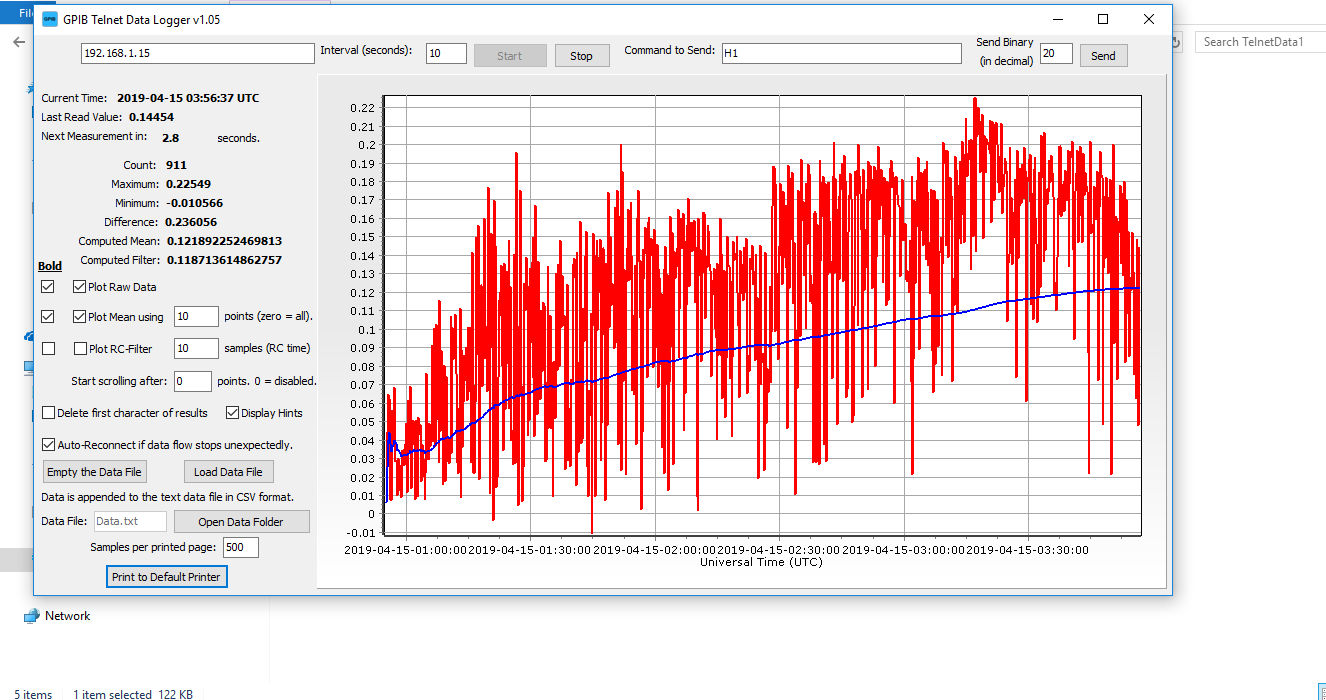

Log of HP 5334B counter for 10 minutes.. Signal was supplied by Fluke 6060B set to 31.920 MHz This is a real time graph while the previous graphs were done after logging was finished using Excel to make the graph. Thank you Cary for an excellent application. Cary Oler's application is available here |
 |
Log of signal strength of 5 MHz WWV transmission. Taken ten seconds apart for an hour and a half. HP 3478A was clipped across the s-meter of a receiver with the AGC off. This is a real time graph while the previous graphs were done after logging was finished using Excel to make the graph. Thank you Cary for an excellent application. Cary Oler's application is available here |
 |

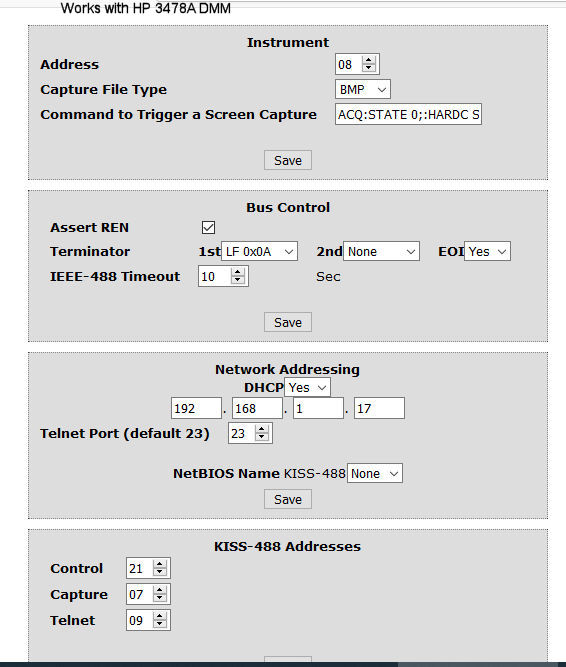

KISS-488 Configuration screen. This configuration works with a Hewlett Packard 3478A DMM. |
 |

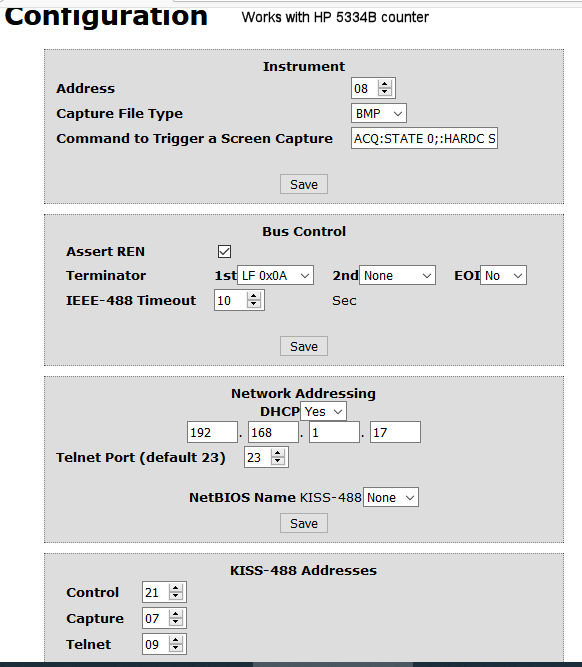

KISS-488 Configuration screen. This configuration works with a Hewlett Packard 5334B frequency counter. |
