Sweeping an IF strip with an HP 3325 Function Generator
|
This is how I set up my HP 3325 to sweep an All American Five radio 455 KHz IF strip. The AA5 must be on a power isolation transformer ! |
 |

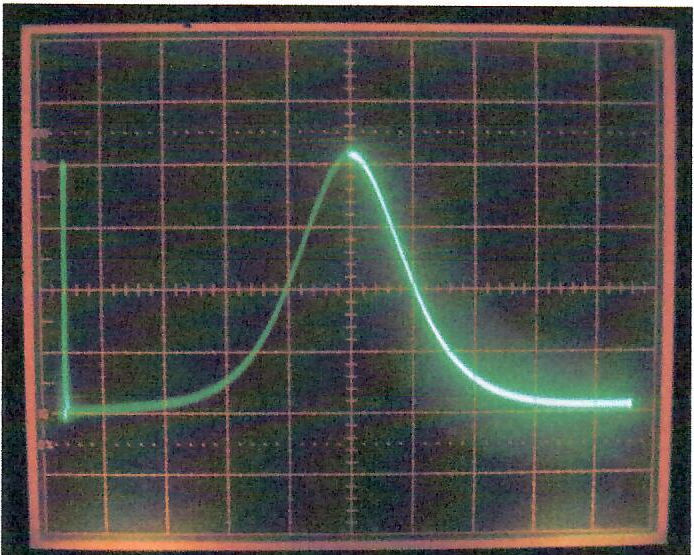

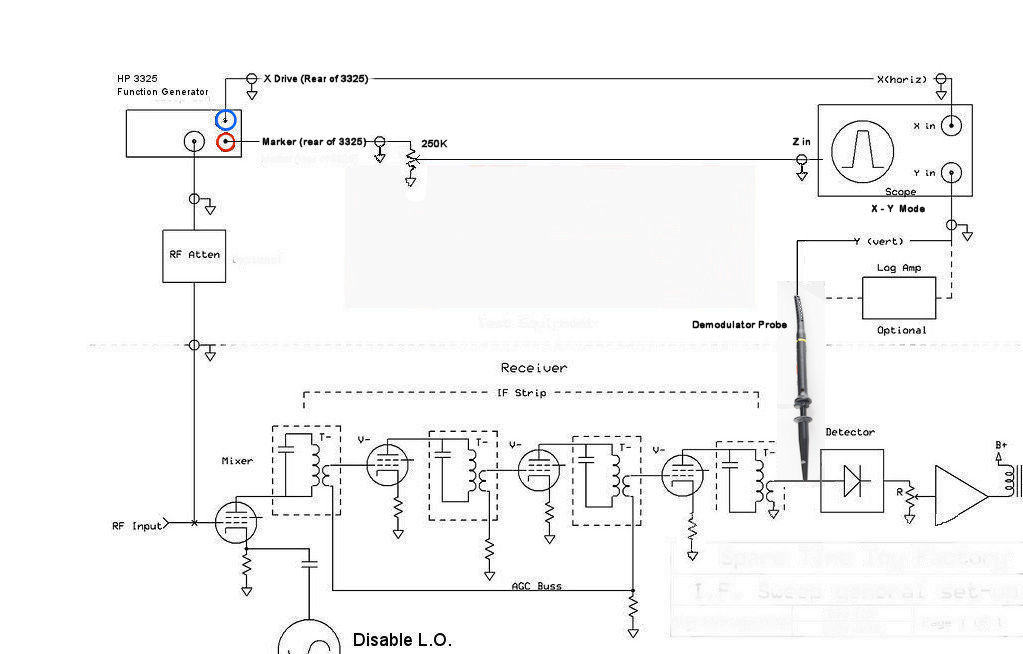

Oscillosope in X-Y mode. For an AA5 - set HP 3325 Start frequency 425 KHz Stop frequency 485 KHz Marker frequency 455 KHz. Sweep time .01 seconds Attach homebrew 250 K potentiometer fixture between Marker BNC on rear of HP3325 and Z input of scope. Start the sweep adjust the 250 K pot so that the display shows some dimming similar to picture above. The marker is where the trace switches from dim to bright. Many thanks to Mike Harrison for his original schematic. |
 |

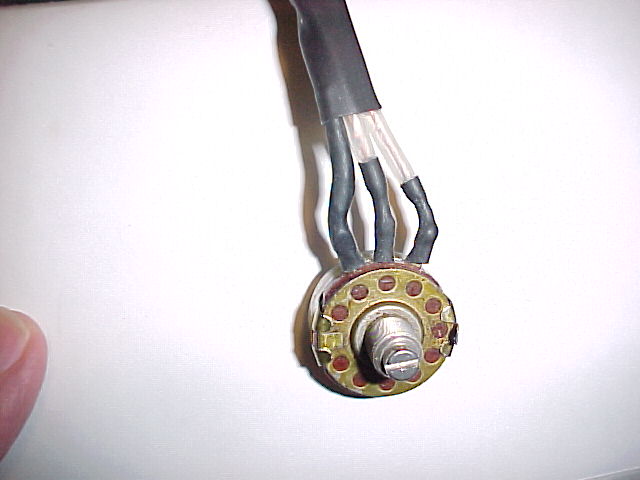

Homebrew fixture for adjusting the amount of dimming. |
 |

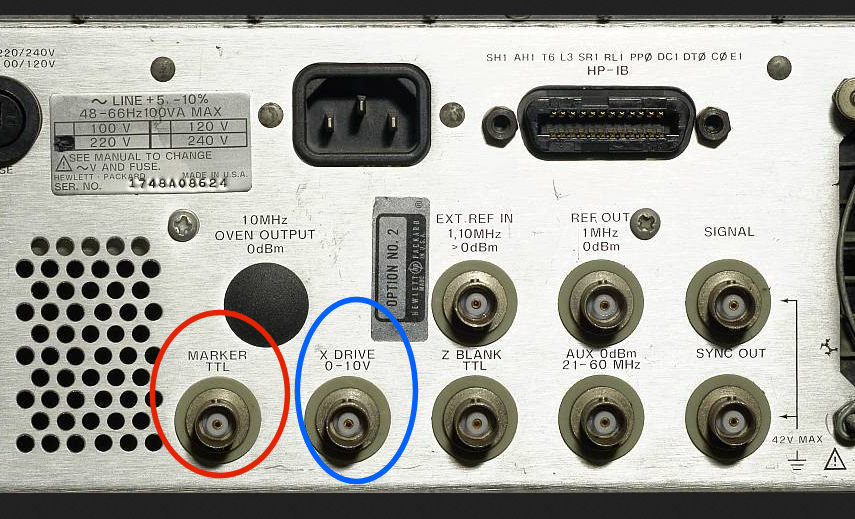

Rear panel of HP 3325. Circled connectors used for sweeping. |
 |

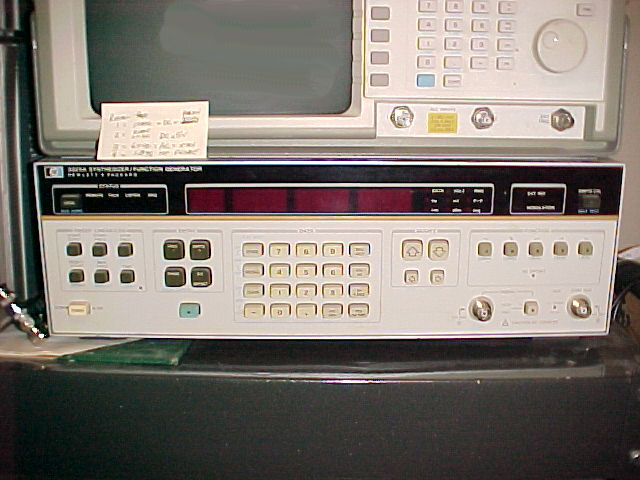

Hewlett Packard 3325 Function Generator |
